Home » Castors By Series » GRDE Series » GRDE Castors with SEB Series Elastic Rubber Wheels » GRDE-62R-SEB

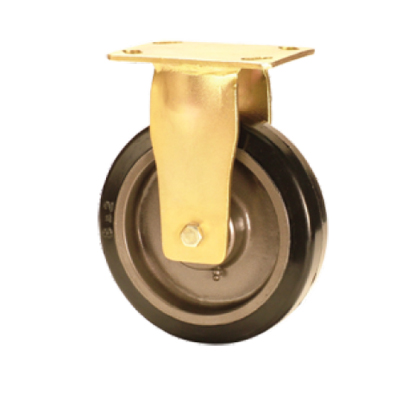

GRDE-62R-SEB

350

150

Elastic
Rubber

Rigid
Castor

none

Muvtons black elastic rubber tyred wheels firmly chemically bonded to precision machined cast iron cores. Highly resilient 75° ±5° Shore A rubber provides very smooth and silent running. Can be used for power towing applications by suitably de-rating the load capacity. Wheel bearing options: Sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range : -20°C +75°C Tread Options: Anti Static, conductive and oil resistant wheels are available.

Send Us Product Enquiry for a Quick Response

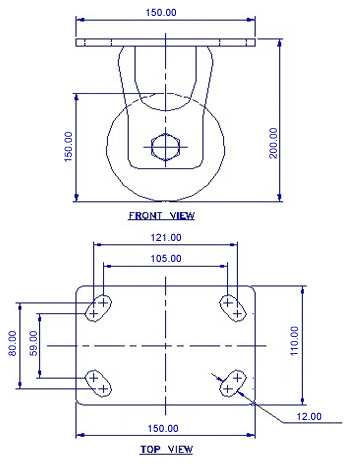

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Elastic Rubber

Wheel Hardness

75° ± 5° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

150

Tread Width(mm)

Load Capacity(kg)

350

Wheel Bearing

Ball Bearing

Overall Height(mm)

200

Top Plate(mm)

150 x 110

Bolt Hole Dia(mm)

105 x 80 to 121/59

Non Marking

Heat Resistant

Yes

Noise Reduction

Yes
