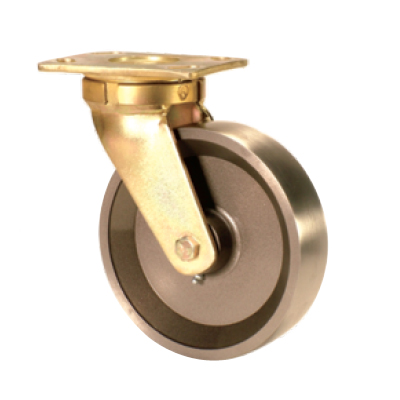

GRDE-62S-DF

1200

150

Alloy
Steel

Swivel
Castors

none

Muvtons drop forged wheels are hot forged from alloy steels and can be used in the roughest of applications on the poorest of floors. These are virtually in-destructible within their capacity range . Tread faces are fully machined for easy maneuvrability - these wheels offer high abrasion and oil resistance . Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range:-100° c to +600° c.

Send Us Product Enquiry for a Quick Response

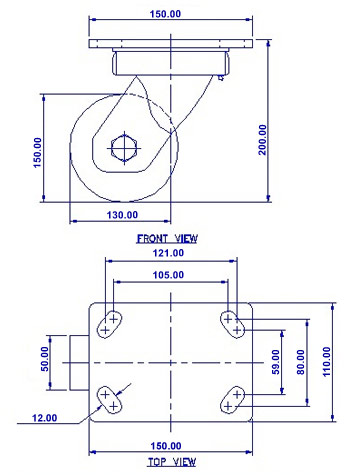

Technical Data

Castor Type

Swivel Castor without Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

150

Tread Width(mm)

Load Capacity(kg)

1200

Wheel Bearing

Ball Bearing

Overall Height(mm)

200

Swivel Radius(mm)

130

Top Plate(mm)

150 x 110

Bolt Hole Centers

105 x 80 to 121/59

Non Marking

Heat Resistant

Yes

Noise Reduction
