Home » Castors By Series » Jacking Castors » JC-SW Series Castors with Side Winding Operation » JC-SW-SAS-8

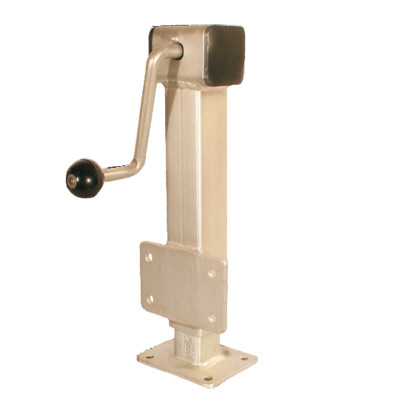

JC-SW-SAS-8

ZOOM

1000

200

Polyurethane

Jacking
Castors

none

Exceptionally strong construction sealed precision ball bearing in the swivel head sealed twin precision ball bearings in the wheel. Exceptionally strong shock resistant glass filled polyamide wheels. Strong 3mm thick formed construction metal thread guards. Temperature range -30°C to +85°C Finish : Zinc Plated, ROHS compliant. Options : Rectangular plate. Diamond Plate and special wheel colors available on request.

Send Us Product Enquiry for a Quick Response

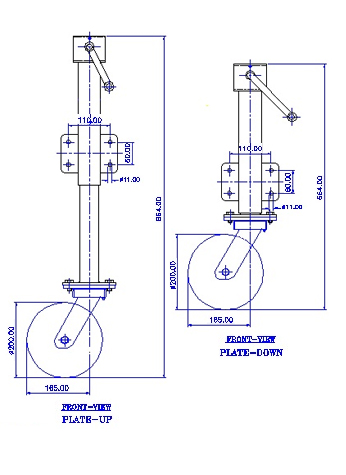

Technical Data

Wheel Material

Polyurethane

Wheel Hardness

93° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

200

Tread Width(mm)

Retracted Height(mm)

664

Load Capacity(kg)

1000

Wheel Bearing

Ball Bearing

Overall Extended Height(mm)

864

Swivel Radius(mm)

165

Top Plate(mm)

150 x 100

Bolt Hole Dia(mm)

110 x 60

Non Marking

Heat Resistant

Noise Reduction
