Home » Castors By Series » SAB Series » SAB Forged Precision Bearing Castors with DF Series Drop Forged Steel Wheels » SAB-42R-DF

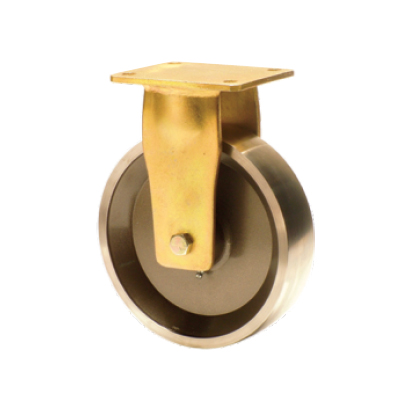

SAB-42R-DF

800

100

Alloy
Steel

Rigid
Castor

none

Muvtons drop forged wheels are hot forged from alloy steels and can be used in the roughest of applications on the poorest of floors. These are virtually in-destructible within their capacity range . Tread faces are fully machined for easy maneuverability - these wheels offer high abrasion and oil resistance . Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range:-100° c to +600° c.

Send Us Product Enquiry for a Quick Response

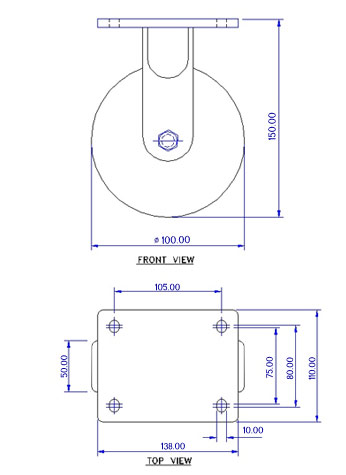

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

100

Tread Width(mm)

Load Capacity(kg)

800

Wheel Bearing

Ball Bearing

Overall Height(mm)

150

Top Plate(mm)

138 x 110

Bolt Hole Dia(mm)

105 x 75-80

Non Marking

Heat Resistant

Yes

Noise Reduction
