Home » Castors By Series » SAB Series » SAB Forged Precision Bearing Castors with DF Series Drop Forged Steel Wheels » SAB-42S-DF-TL

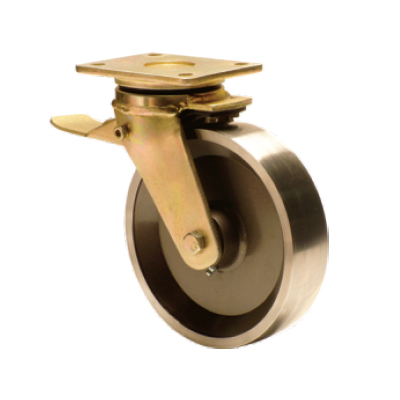

SAB-42S-DF-TL

800

100

Alloy
Steel

Swivel
with
Total
Lock

Brake

Muvtons drop forged wheels are hot forgrd from alloy steels and can be used in the roughest of applications on the poorest of floors. These are virtually in-destructible within their capacity range . Tread faces are fully machined for easy maneuvrability - these wheels offer high abrasion and oil resistance . Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range:-100° c to +600° c.

Send Us Product Enquiry for a Quick Response

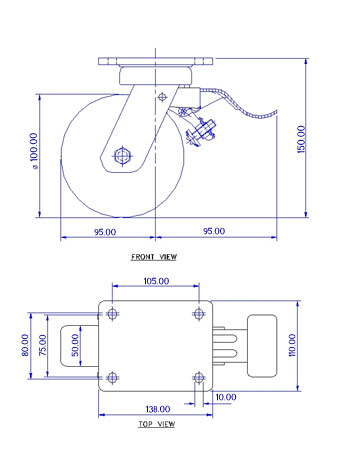

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

100

Tread Width(mm)

Load Capacity(kg)

800

Wheel Bearing

Ball Bearing

Overall Height(mm)

150

Swivel Radius(mm)

Swivel Radius TL(mm)

Top Plate(mm)

138 x 110

Bolt Hole Dia(mm)

105 x 75-80

Non Marking

Heat Resistant

Yes

Noise Reduction
