Home » Castors By Series » SAB Series » SAB Forged Precision Bearing Castors with SZS Series Soft Polyurethane Wheels » SAB-82S-SZS-TL

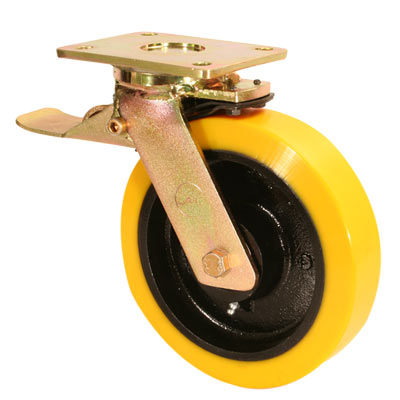

SAB-82S-SZS-TL

650

200

Polyurethane

Swivel
with
Total
Lock

Brake

Muvtons premium soft durometer polyurethane treaded wheels 83° ±3° shore a, firmly bonded to precision machined cast iron cores. These wheels have been designed in response to noise problems and allow loads to be cushioned. The use of 'lively' polyurethane materials allows these wheels to 'flex & roll' over debris and obstacles without picking up objects. They are non-marking and floor protective. Tested & guaranteed against bond failures. Wheel bearing options : sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range: -20° c to +85° c. Tread options : anti-static ; conductive wheels are.

Send Us Product Enquiry for a Quick Response

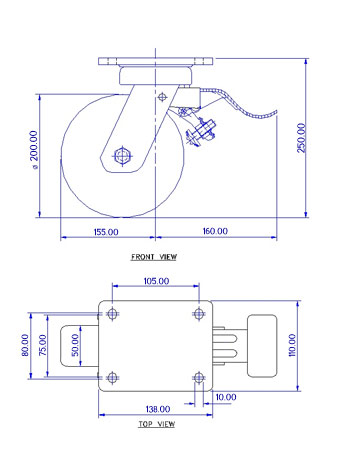

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Polyurethane

Wheel Hardness

83° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

200

Tread Width(mm)

Load Capacity(kg)

650

Wheel Bearing

Ball Bearing

Overall Height(mm)

250

Swivel Radius(mm)

155

Swivel Radius TL(mm)

160

Top Plate(mm)

138 x 110

Bolt Hole Centers

105 x 75-80

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
